Square Shaped Wall-Desk Type Sphygmomanometer
Short Description:
ABS plastic gauge

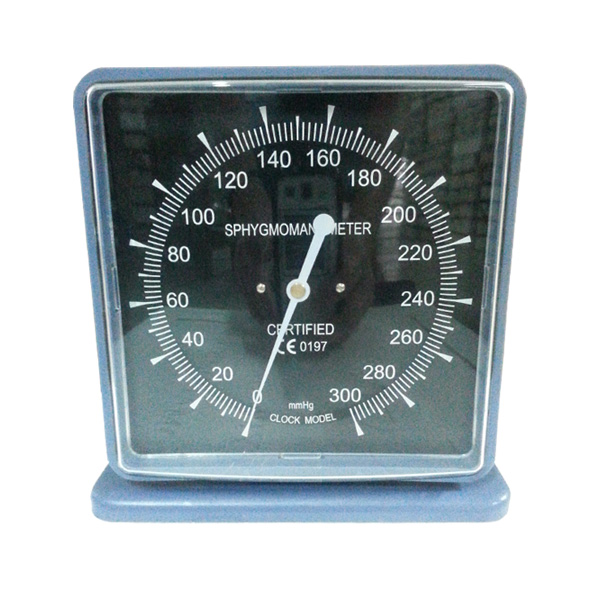

Square shaped 14cm diameter dial

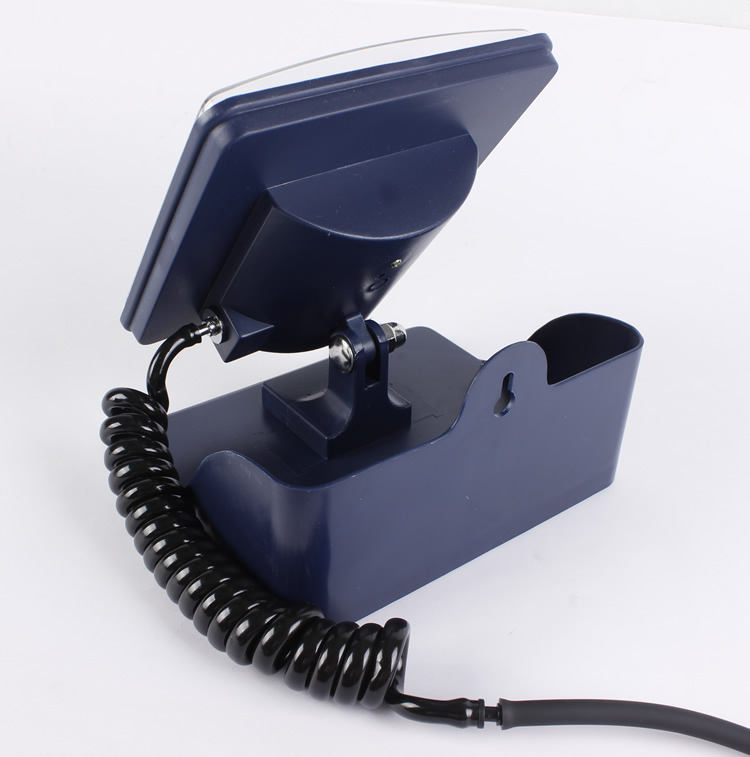

Front and rear adjustable for easy reading
All kinds of cuff available
Double tube adult latex bladder
Standard latex bulb
Inflation valve with spring
Standard end valve
PVC coil tubing
Product Introduction
Blood pressure is a measurement of the pressure of the blood flowing against the walls of the arteries.Arterial blood pressure is constantly changing during the course of the cardiac cycle.The highest pressure in the cycle is called the systolic blood pressure and the lowest is the diastolic blood pressure,the both readings are necessary to enable you to evaluate the status of your blood pressure.Many factors such as physical activity,anxiety,or the time of day,can influence your blood pressure,Blood pressure is typically low in the morning but high from afternoon to evening.it is lower in the summer but higher in the winter.

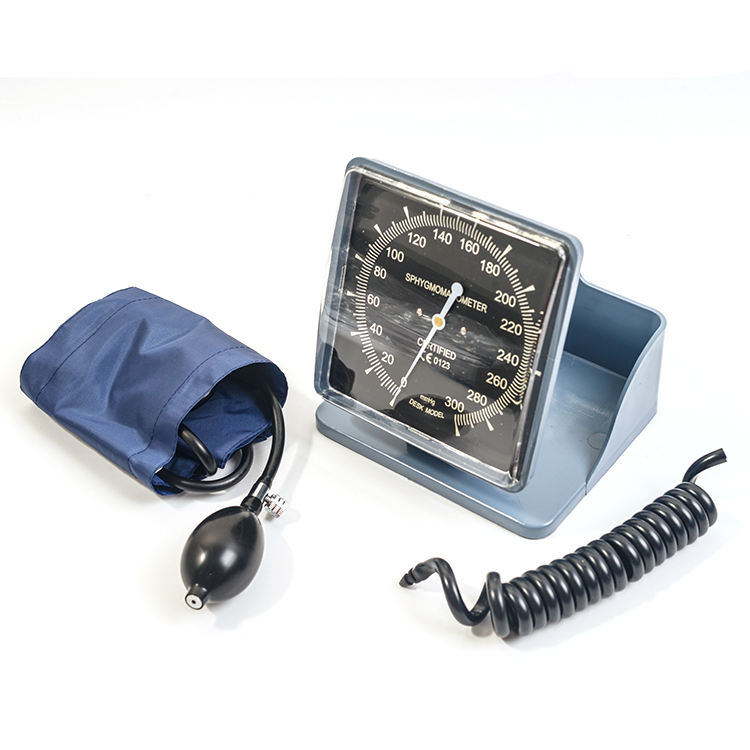

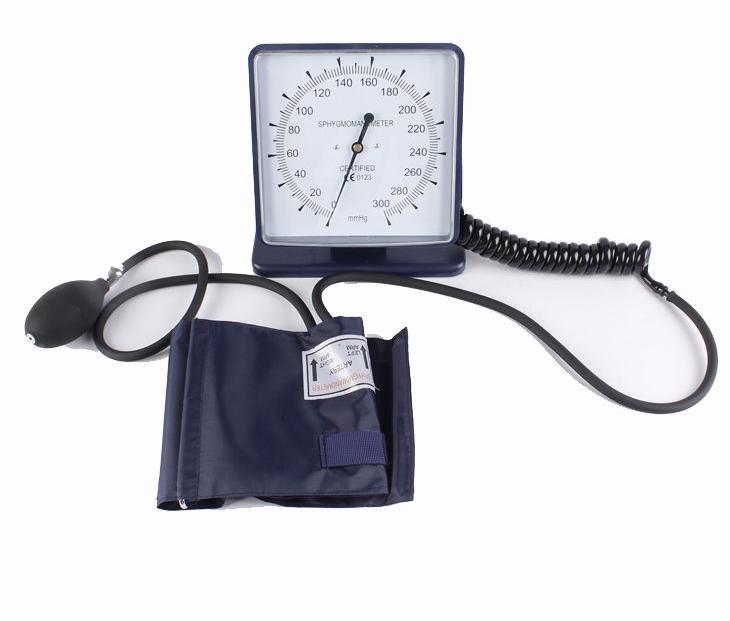

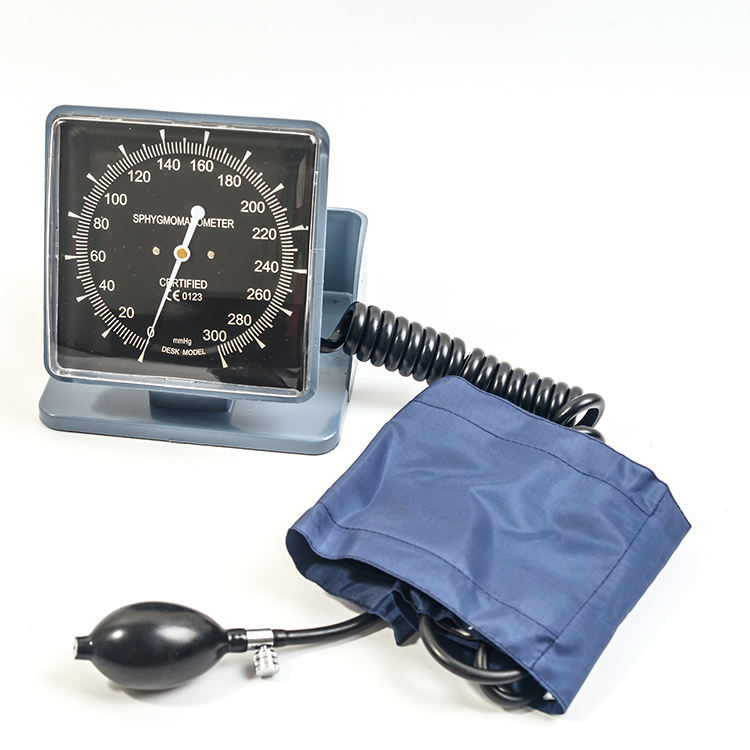

The Square shaped Desk/wall type Sphygmomanometer is commonly used for the indirect measurement of blood pressure.as we all know blood pressure is a very important vital sign of human body.this device can be early detection of blood pressure problems for intervention.its application is clinics,pharmacies,and hospitals etc. It mainly consists of a cuff(with bladder inside),an air bulb(with valve), a square shaped gauge and a stethoscope.
This Square shaped ABS Desk/wall type Sphygmomanometer AS-105 is no-mercury which is safe and accurate.it can be used on the desk,or put it on the wall.Different specifications to meet different customers requirements.we can supply without stethoscope or matching single head or double sided stethoscope,all set will be packed in a gift box which is easy to carry and store. Latex/PVC(latex-free) bladder,Latex/PVC(latex-free) bulb are optional.also all different size cuff are available.can choose with D metal ring or not. We also supply these accessories bladder,cuff,bulb,gauge,stethoscope at a very competitive price.
Parameter
1.Description:Square shaped wall desk type sphygmomanometer
2.Model NO.: AS-105
3.Type: wall desk type
4.Measurement range: Pressure 0-300mmHg;
5.Accuracy: Pressure ±3mmHg (±0.4kPa);
6.Bulb: Latex/PVC
7.Bladder: Latex/PVC
8.Cuff:cotton/Nylon with/Without D metal ring
9.Mini scale division: 2mmHg
10.Power source:manual
How to operate
1.Connect every part firmly.make sure no leakage.
2.Place the stethoscope head over the main artery,underneath the artery mark of the cuff.
3.With valve closed,press the bulb and continue pumping to a value 20-30mmHg above your normal blood pressure.
4.Record onset of Korotkoff sound as systolic pressure,and disappearance of these sounds as dias-tolic pressure.
5.Open the valve to deflate the cuff gradually at a rate of 2-3 mmHg per second.
For the detailed operation procedure,please read the related user manual carefully and follow it.for the measuring result,please consult the related doctor.
